SIEMENS IP67 VFD

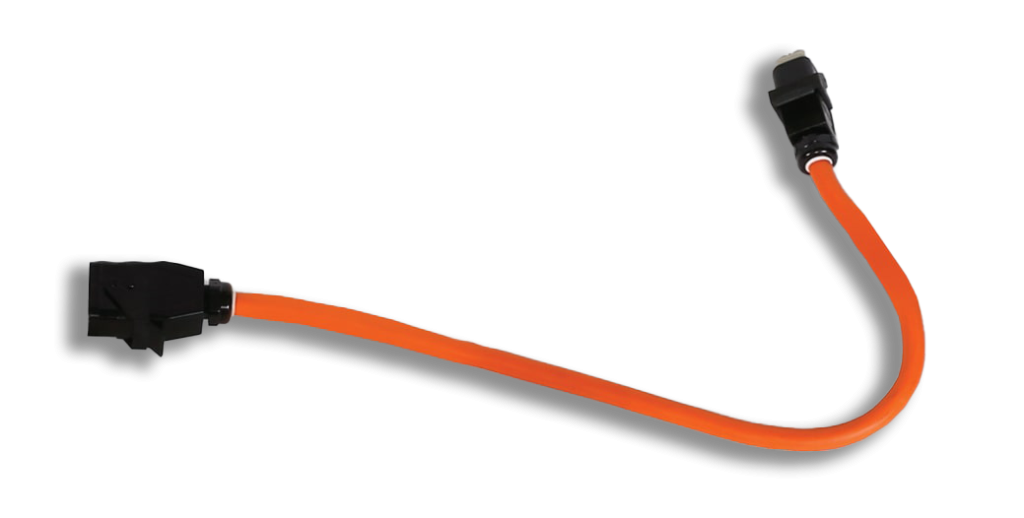

Cable assemblies from Electro-Matic are designed and manufactured to be compatible with a wide range of Siemens Motion Control products including SINAMICS S120 Drives, SIMOTION D, SIMOTOCS Motors, G110D Drives, G120 Drives and G110M Drives. The EM cable assemblies consist of connector and cable components designed by world class manufacturers.
Whether fixed length or made to order lengths, Electro-Matic offers a variety of Siemens Motion Control Cable Assemblies.
SIEMENS Assembly Part Number Configurator
| Drive Type | Female Connector | Male Connector | Cable Type | Pairs | AWG | Length in Meters |
|---|---|---|---|---|---|---|
| G1 G110D |
NN No Connector | NN No Connector | B TYP Drop Black |
N 4Cond no brake or temp pairs |
10 10awg 18A up to 10HP |
Example M00.5 (.5M) |
| G2 G120D |
S4 Straight 4/2 no latch |
S4 Straight 4/2 no latch |
O TYP Motor Orange |
B 4Cond + 2 pairs for brake & temp |
12 12awg 13.2A up to 7HP |
Example M01.0 (1M) |
| GM G110M |
L4 Straight 4/2 with latch |
L4 Straight 4/2 with latch |
S PUR Orange Shield |
A 4Cond + 1 pair (pins 4 and 6) |
14 14awg 10.2A up to 5HP |
Example M10.5 (10.5M) |
| M2 M200D |
A4 Angled 4/2 Connector |
A4 Angled 4/2 Connector |
16 16awg 4.1A up to 2HP |
|||
| G5 G115 |
A8 Angled 8/0 Connector |
A8 Angled 8/0 Connector |
||||
| E2 ET200 |
S8 Straight 8/0 Connector |
S8 Straight 8/0 Connector |
G110D
EMG1A4NNBNxxMxx.x – G110D 4/2 angled female power in-feed cable unshielded
EMG1NNA8SNxxMxx.x – G110D 8/0 angled male motor cable
G115D
EMG5S4NNBNxxMxx.x – G115D 4/2 straight female power in-feed cable unshielded
EMG5NNS8SNxxMxx.x – G115D 8/0 straight male motor cable shielded
G120D
EMG2A4NNBNxxMxx.x – G120D 4/2 angled female power in-feed cable unshielded
EMG2NNA8SNxxMxx.x – G120D 8/0 angled male motor cable shielded
M200D
EMM2A4NNBNxxMxx.x – M200D 4/2 angled female power in-feed cable unshielded
EMM2NNA8ONxxMxx.x – M200D 8/0 angled male motor cable unshielded
G110M
EMGMA4NNBNxxMxx.x – G110M 4/2 angled female power in-feed cable unshielded
EMGMNNA8SNxxMxx.x – G110M 8/0 angled male motor cable shielded

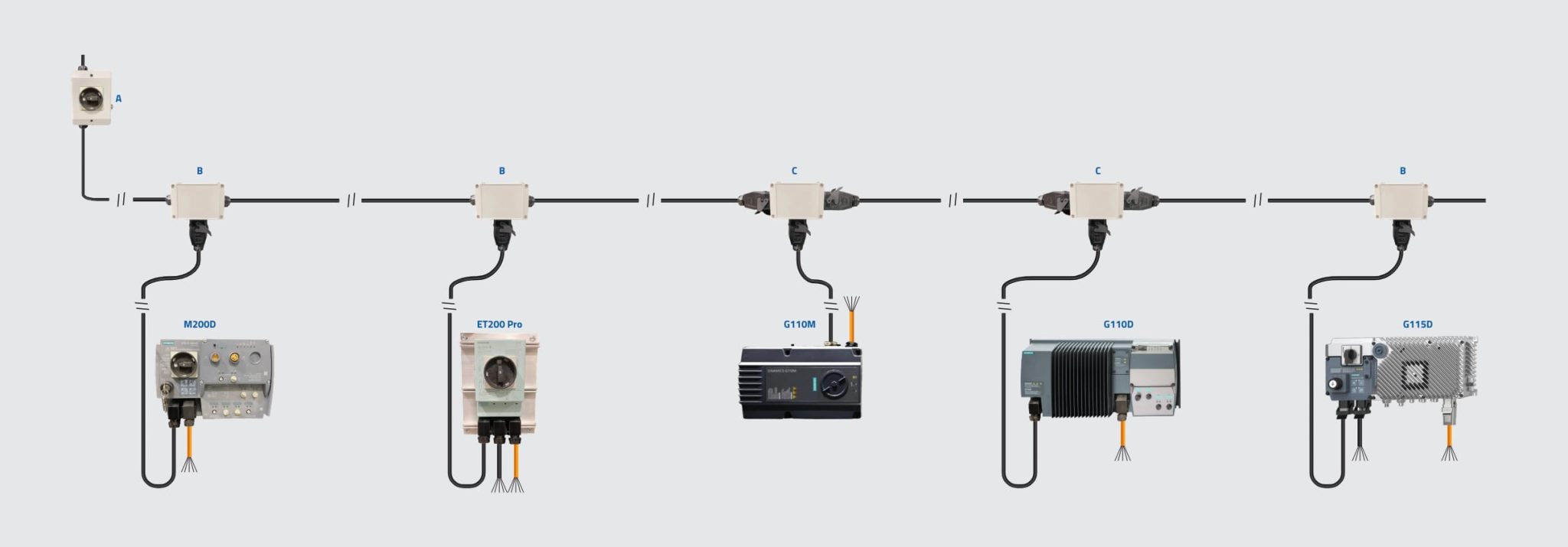

POWER TEE’S
*(A) EM3BMHANQ4SDCG10 – Power Tee w/disconnect hardwired 4C/10awg cable
*(C) EM3BMHANQ4PT1012 – Power Tee 4/2 connections with latch on in-feed only 4C/10awg in-feed 4C/12awg drop
*(B) EM3BMHANQ4CG1012 – Power Tee hardwired with no latch drop receptacle 4C/10awg in-feed 4C/12awg drop
*(D) EM3BMHANQ4SD10 – Power Tee w/disconnect 4/2 connections 4C/10awg cable
*More options available upon request
Reliability
Electro-Matic can provide any length variation needed, while also working within a tight time frame to get you the cables you need with little or no downtime. A supplier that can provide cables with the necessary length quickly, will prove to be a real asset.
We understand the needs and concerns of businesses looking to integrate new cable assemblies into their manufacturing process.
Common Concerns
- Downtime and Cost
- Cable Customization
- Assurance of Quality & Safety
- Compatibility
If any of these sound familiar to you then chances are you know the pains of expensive downtime, incorrect cable configurations, subpar solutions, and incompatibility.
Electro-Matic has built a reputation on reliability. Whether it is helping businesses meet their unique lead time needs, eliminating unnecessary downtime, taking a product oriented focus to ensure both cable quality and complete functionality, or our commitment to safety, we remain dedicated to our customers.
Quality
The primary goal of Electro-Matic Connectivity is to produce quality cable assemblies with timely deliveries. The investments made by Electro-Matic Connectivity in manufacturing processes and certifications, as well as the training of production personnel, are good reasons to rely on these assemblies for use with Siemens Motion Control products.
Benefits
- ISO:9001 Certification
- UL ZPFW2 and UL ZPFW8
- Production Personnel Trained to WHMA/IPC-A-620
- Knowledgeable & experienced engineering staff
- 100% physical inspection & electrical testing of all cable assemblies
