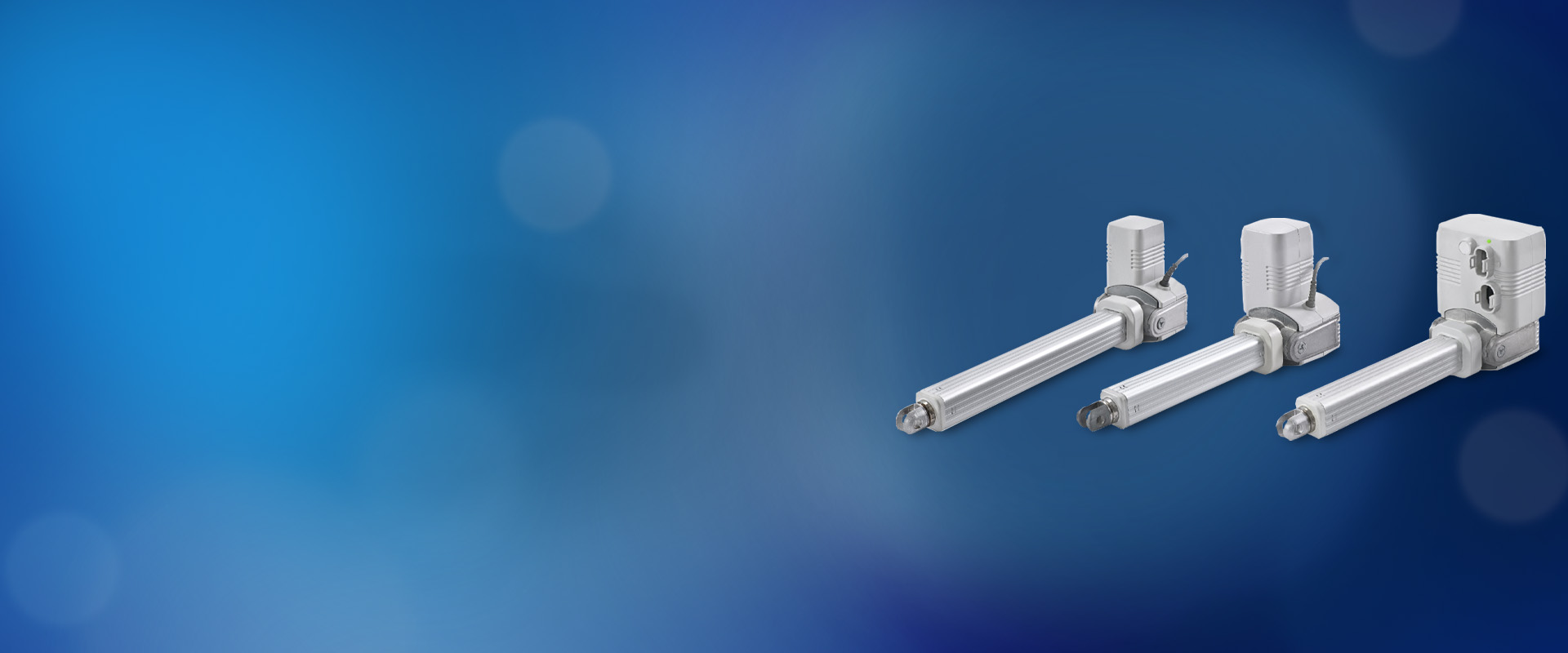

Linear Actuators

Ewellix’s extensive experience and knowledge of electromechanical solutions can satisfy the most demanding requirements. With the widest range on the market of linear actuators, control units and operating devices, Ewellix is the preferred partner to match your unique application needs.

Electric linear actuators create stable, accurate back and forth movement. These devices
have an endless range of applications. If the process involves pushing, pulling, lifting or sliding, a linear actuator can be a key part of the solution.

Ewellix supplies a wide range of actuators and their associated control units and accessories. We specialise in compact, high-quality devices, suitable for many different industry applications. A variety of stroke ranges are available, as well as actuators that can handle medium and high loads.

Linear Actuators Product Range

  • Matrix Series Linear Actuators

    • Max load up to
      8 kN
    • Max speed up to
      13 mm/s
    • Voltage
      12 or 24 V DC, 120 or 230 V AC
    • Silent operation

  • Runner

    • Max load up to
      12 kN
    • Max speed
      up to 8 mm/s
    • Voltage
      24 V DC
    • Silent operation

  • CAJA 35C

    • Max load up to
      3,5 kN
    • Max speed
      up to 7,5 mm/s
    • Voltage
      24 V DC
    • Integrated Quick Release function

  • Ecomag

    • Max load
      up to 6 kN
    • Max speed
      up to 9 mm/s
    • Voltage
      24 V DC
    • Housing fits a SEM control unit

Want more information on Linear Actuators?

Download the catalogue today!

  • CAHB Series Linear Actuators

    • Max load
      up to 10 kN
    • Max speed
      up to 60 mm/s
    • Voltage
      12, 24, 48 V DC. 115 or 230 V AC
    • Up to IP69K/66M, wide temperature range

  • CAT, CAR & CAP Series Linear Actuators

    • Max load
      up to 4 kN
    • Max speed
      up to 193 mm/s
    • Voltage
      12 or 24 V DC, 120, 230 or 400 V AC
    • Modular range for easy integration

  • CAWD Series Linear Actuators

    • Max load
      up to 0,5 kN
    • Max speed
      up to 16 mm/s
    • Manual and electrical 12 V DC versions
    • IP 67/69K, wide temperature range

  • CAMT

    • Max load
      up to 6 kN
    • Max speed
      up to 5 mm/s
    • Voltage
      24 V DC
    • Play free motion

  • Control Units for Linear Actuators

    • Fitted with a 110 or 230 VAC or 24 VDC power supply
    • 2, 3, 5 or 6 output channels 24 VDC, max. 18A, 30A for DC input
    • up to 3 control gear connections
    • rechargeable battery or removable rechargeable battery and wall charging station optional

  • Operating Switches

    • Up to 10 console switches
    • DIN7, FCC or HD15 connectors
    • up to IP67
    • display for stored functions available as an option
